Note: We Provide customized Solutions for Pipes/ Cables/ Sealings

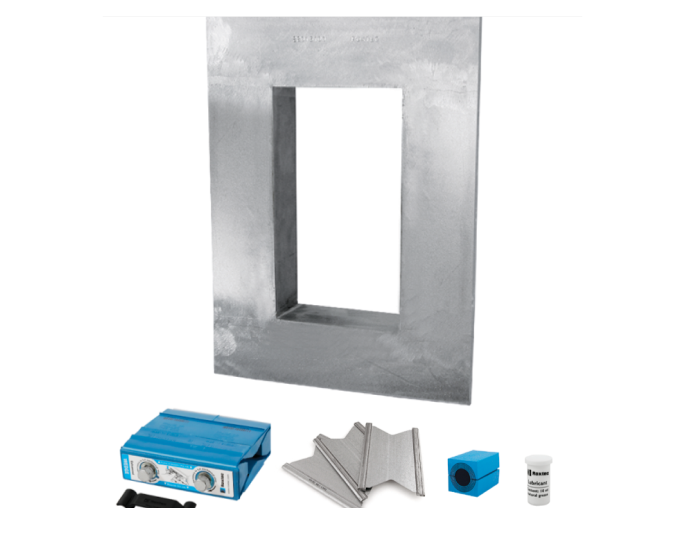

Frame
Modules
Lubricant
Stayplates
Compression unit

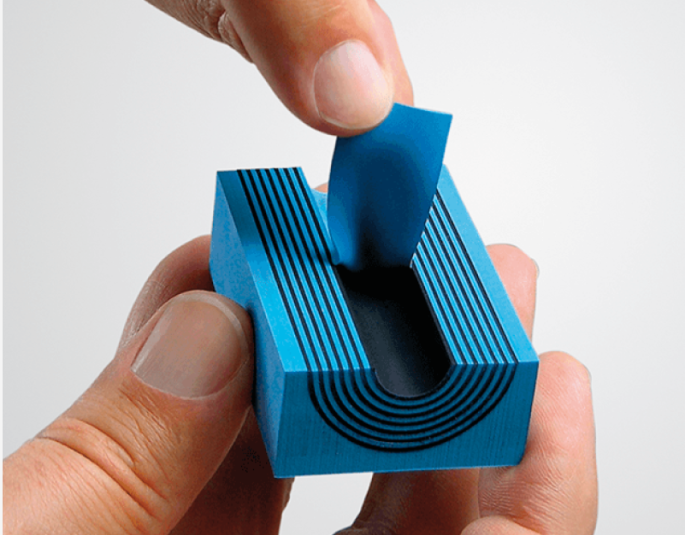

Multidiameter™ is the key innovation in our solutions

The layers can be removed to adapt the hole size to the actual size of the cable or pipe passing through

Roxtec RM modules come in 10 basic sizes

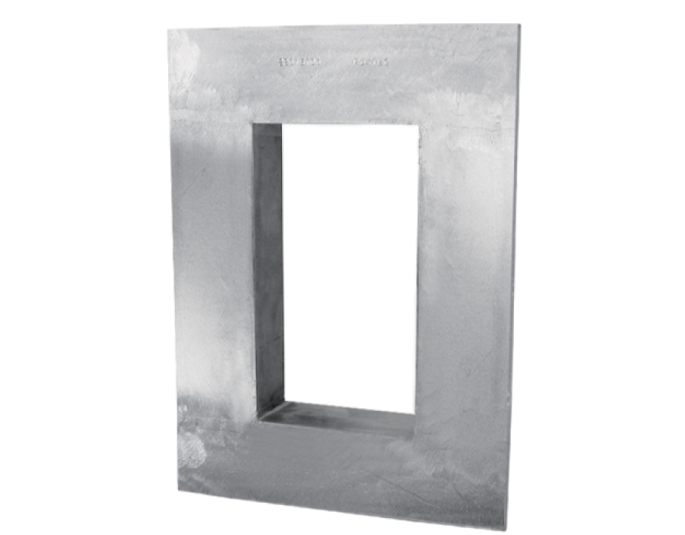

The frame is the transit opening itself and provides enough structural strength to manage the compression force when closing the seal

The frames are welded, bolted to or cast into the structure

There are different sizes of the opening, i.e. the packing space

Openings can be added to each other, horizontally and vertically, to make one big combination frame with several openings

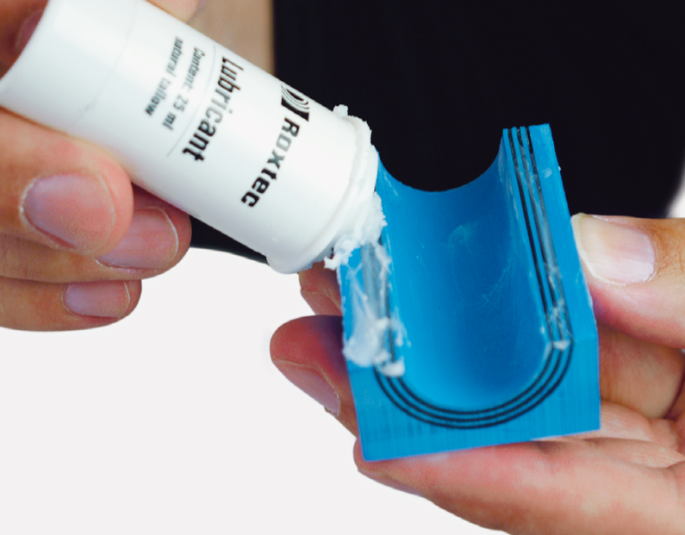

Natural tallow is used to lubricate the sealing modules, the compression unit and the inside of the frame

The lubricant ensures movement in the frame during compression, which is essential for an even compression and thereby correct sealing performance

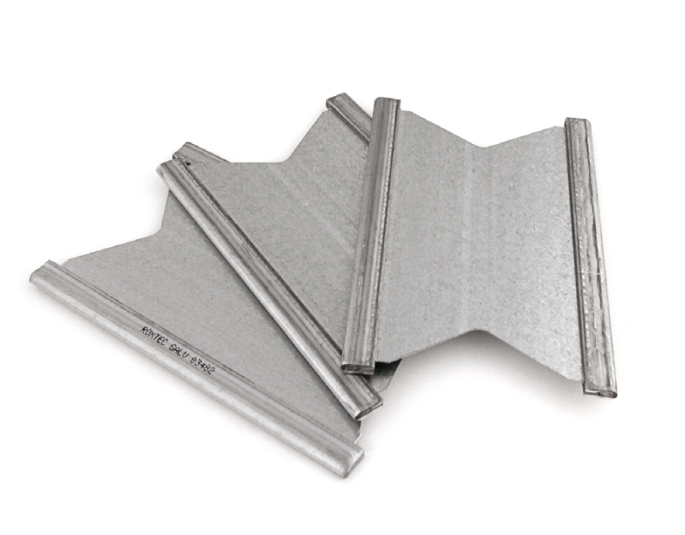

The stayplates shall be inserted between the module rows

The function of the stayplate is to provide pull-out resistance for the sealed cables or pipes and to improve leak-tightness performance

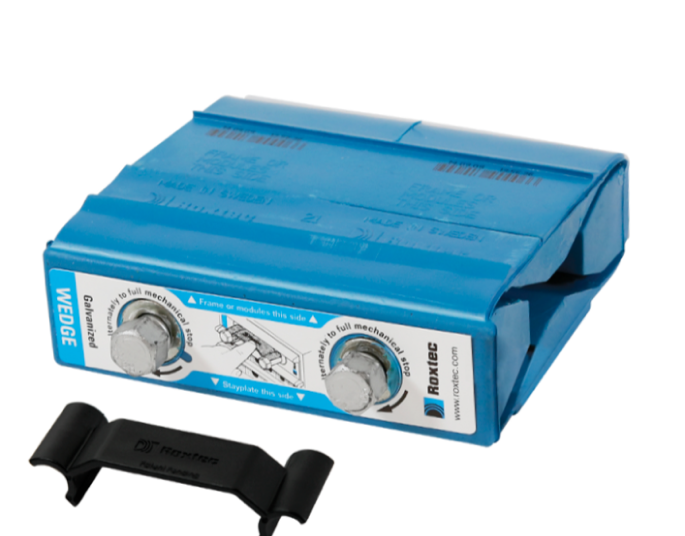

To accomplish a tight seal, a compression unit is used to seal the installation of cables or pipes, modules and stayplates

When the bolts are tightened the compression unit expands and compress the modules to create a tight seal

The wedge clip is used to verify the compression
